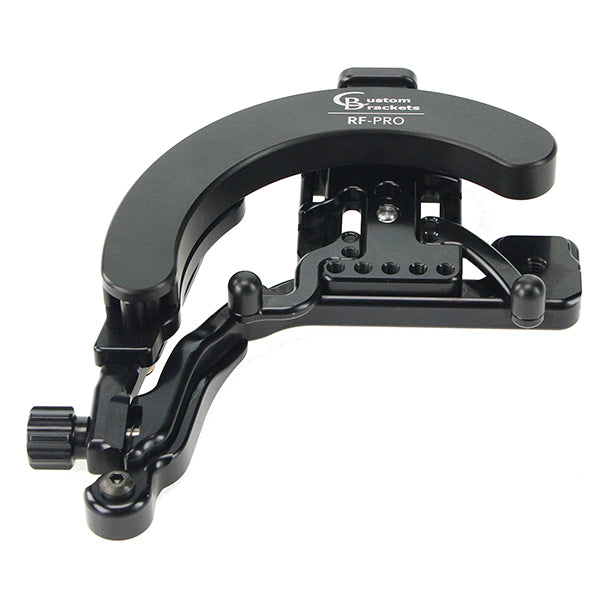

RF-PRO Brackets


A fully adjustable lightweight and compact flash rotating bracket for the photographer on the go.

  • The only roller bearing bracket for flash rotation available
  • Consistent straight and bounce lighting in both horizontal and vertical
  • Accepts all cameras with and without add-on vertical grips / battery packs
  • Fold away D-Clip style screws for both camera and flash
  • Built-in camera and flash anti-twist
  • Slot for camera hand strap
  • Aluminum for light weight & black anodized
  • Battery compartment accessibility
  • Stands upright utilizing a fold-out leg
  • Folds flat for storage
  • Optional connectors for attaching to straps and belts
  • Optional radio slave mount
  • US Patent # 8,774,618
Specifications



Weight:  10 oz.

In-Use Dimensions : 5-5/8" high, 5-3/4" wide, 5-1/2" deep

Storage Dimensions: 7" x 4-3/4" x 1-1/2"

Lens-to-flash distance: 8-1/2"



    Flash Mounts

    These are optional and sold separately only by Custom Brackets





    Accessories & Spare Parts

    These are optional and sold separately only by Custom Brackets







     Bracket Bottom Plates

     These are optional and sold separately only by Custom Brackets



    Instructions

    RF-PRO Instructions

    RF-PRO M Instructions

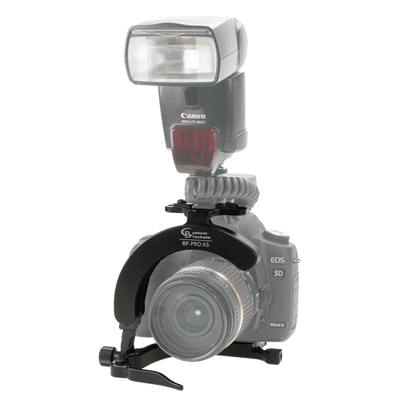

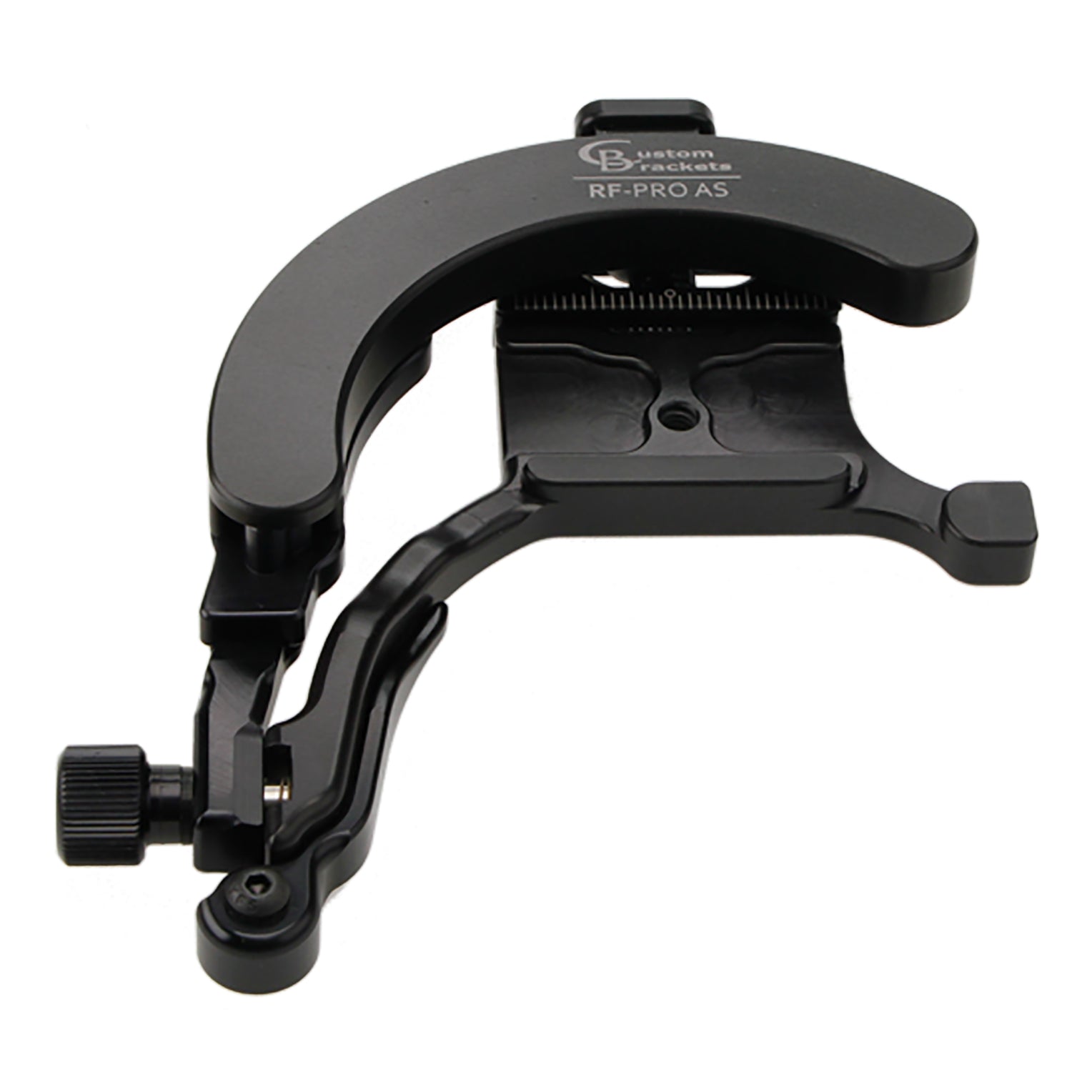

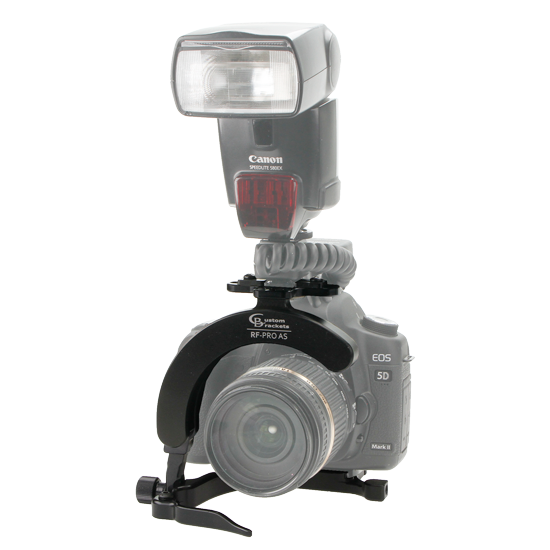

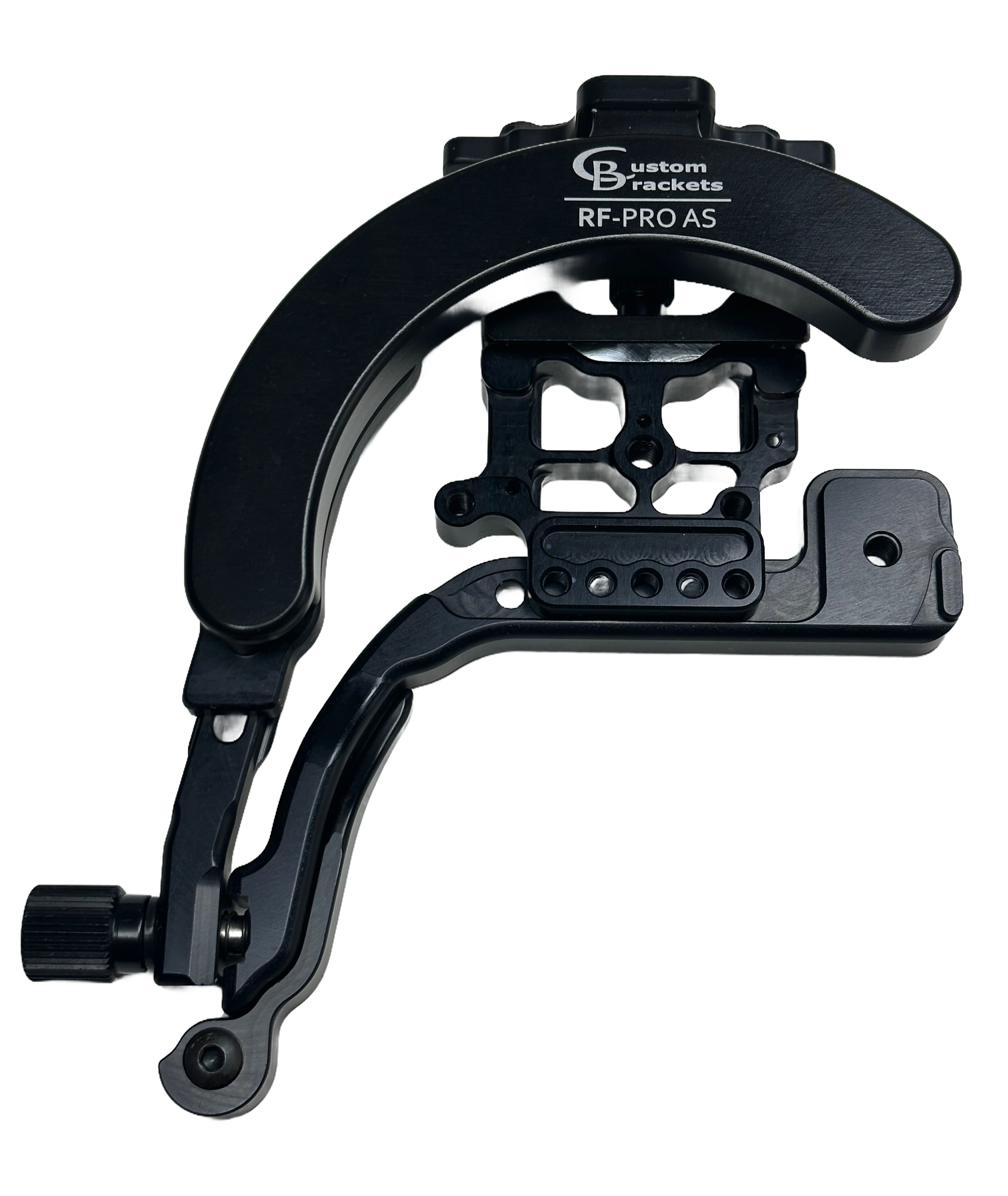

    RF-PRO AS Instructions
